- Size: 12500mm*2700mm*1250mm
- Place of Origin: Jinan
- Brand Name: SINOTRUK HUAWEI
- Model Number: HOWO
- Weight: 11500.000 kg
SINOTRUK is the biggest and also the earliest heavy duty truck manufacture in China, specialized in the researching, developing and manufacturing of heavy trucks and related key parts. The products include truck chassis with GCW over 14 tons as well as tractor trucks with hauling capacity over 12 tons, tipper trucks, special trucks etc.
SINOTRUK Hubei Huawin Special Vehicle Co.,LTD, located in Suizhou of Hubei province, is a branch factory of SINOTRUK.The annual production capacity is over 20,000.00 units all kinds of special trucks and 10,000.00 units trailers. With a tradition over 50 years in engineering industry, Huawin has accumulated rich experienced in manufacturing all kinds of special purpose vehicles and semi trailers.
The truck products range from tractor trucks, cargo tru cks, crane mounted trucks, garbage trucks, water trucks etc. And the trailer products range from flatbed trailers, tipper trailers, tank trailers, concrete mixer trailers etc.

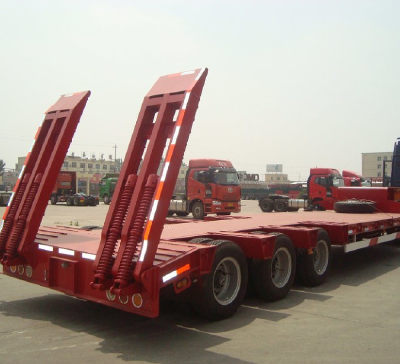

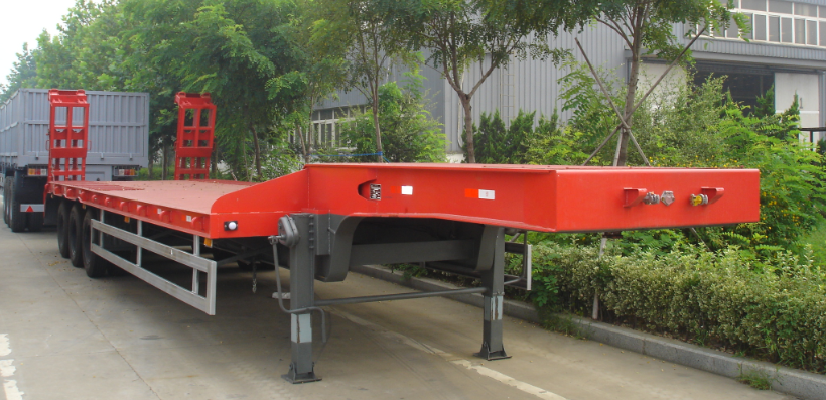

The Specification Of SINOTRUK CNHTC HOWO 40 Ton Low-Bed Trailer
| 4 0 Ton Low-Bed Trailer(12.5m) | |
| Standard specification | |
| Gross Weight | About 11.5 tons |
| Outer side dimension(mm) | 12500mm*2700mm*1250mm |
| Loading Capacity (Ton) | 60 ton |
| AXLES | FUWA 13 T /PER , 3 AXLE S |
| Tire | 10.00R20/ 11.00R20 12pieces |
| Rim | 7.5/8.25 12pieces |
| Suspension | mechanical suspension |
| Spring leaf | 10 pieces or intensify |
| King pin | 3.5" |
| Support leg | Manual,two |
| Ladder | A pair of ladder (Manhand control ) |
| Main beam | Height: 500mm, upper plate is 18mm, middle plate is 8mm, down plate is 18mm side beam is 20# |
| Platform | 5mm diamond platform |
| Brake chamber | 4 double and 2 single chambers |
| Valve | Standard |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m*0.5m*0.5m |
