- Size: 12500mmX2500mmX1620mm
- Place of Origin: Jinan
- Brand Name: SINOTRUK HUAWEI
- Model Number: HOWO
- Weight: 6500.000 kg
SINOTRUK is the biggest and also the earliest heavy duty truck manufacture in China, specialized in the researching, developing and manufacturing of heavy trucks and related key parts. The products include truck chassis with GCW over 14 tons as well as tractor trucks with hauling capacity over 12 tons, tipper trucks, special trucks etc.
SINOTRUK Hubei Huawin Special Vehicle Co.,LTD, located in Suizhou of Hubei province, is a branch factory of SINOTRUK.The annual production capacity is over 20,000.00 units all kinds of special trucks and 10,000.00 units trailers. With a tradition over 50 years in engineering industry, Huawin has accumulated rich experienced in manufacturing all kinds of special purpose vehicles and semi trailers.
The truck products range from tractor trucks, cargo tru cks, crane mounted trucks, garbage trucks, water trucks etc. And the trailer products range from flatbed trailers, tipper trailers, tank trailers, concrete mixer trailers etc.

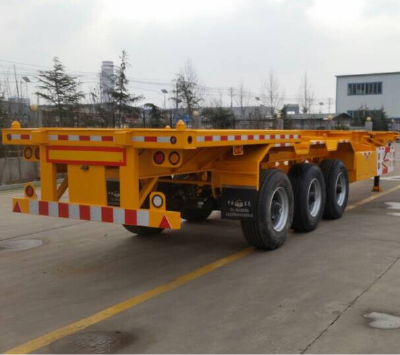

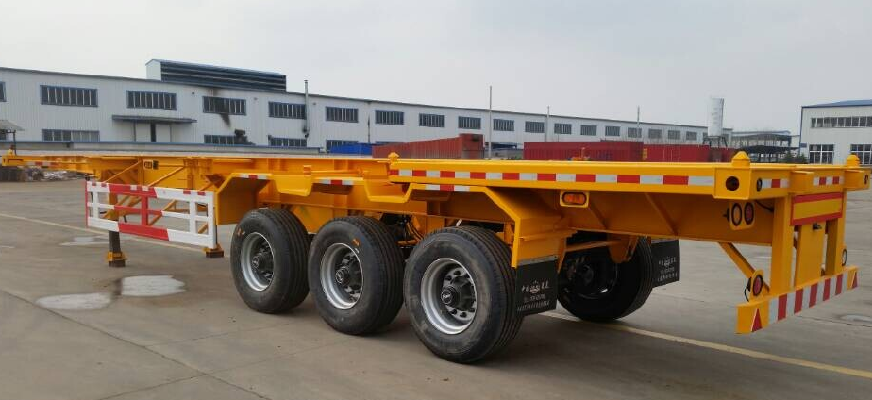

The Specification Of SINOTRUK CNHTC HOWO 40FT Skeleton Container Sem i-trailer-40T
| 40FT Skeleton Container Semi-trailer-40T | |
| Item | 40FT Skeleton Container Semi-trailer-40T |
| Tare Weight | 6500kg |
| Pay load | 40000kg |
| Overall dimension(mm) | 12500mm×2500mm×1620mm |
| Chassis Specification | |
| Chassis frame | I beam,Q345B, high tensile steel |
| Capacity | Two 20ft containers or one 40ft container |
| Axles | FUWA brand 13 T /PER , 3 AXLES |
| Tire | 12R22.5,radial tubeless tyre, 12pieces |
| Spare tyre | One set tyre,including one carrier |
| Rim | 8.5 12pieces |
| Suspension | Germany design mechanical suspension |
| Spring leaf | 13 pieces |
| King pin | JOST 2 |
| Landing gear | JOST brand,two speed, manual |
| Brake system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tank |
| Air storage tank | 40L |
| Lock sets | 12 sets standard |
| Accessories | One piece tool box |
| Pianting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
