- Size: 8377x2496x3048mm
- Place of Origin: Jinan
- Brand Name: SINOTRUK HUAWEI
- Model Number: ZZ1167M4617
- Weight: 25000.000 kg
SINOTRUK is the biggest and also the earliest heavy duty truck manufacture in China, specialized in the researching, developing and manufacturing of heavy trucks and related key parts. The products include truck chassis with GCW over 14 tons as well as tractor trucks with hauling capacity over 12 tons, tipper trucks, special trucks etc.
SINOTRUK Hubei Huawin Special Vehicle Co.,LTD, located in Suizhou of Hubei province, is a branch factory of SINOTRUK.The annual production capacity is over 20,000.00 units all kinds of special trucks and 10,000.00 units trailers. With a tradition over 50 years in engineering industry, Huawin has accumulated rich experienced in manufacturing all kinds of special purpose vehicles and semi trailers.
The truck products range from tractor trucks, cargo trucks, crane mounted trucks, garbage trucks, water trucks etc. And the trailer products range from flatbed trailers, tipper trailers, tank trailers, concrete mixer trailers etc.

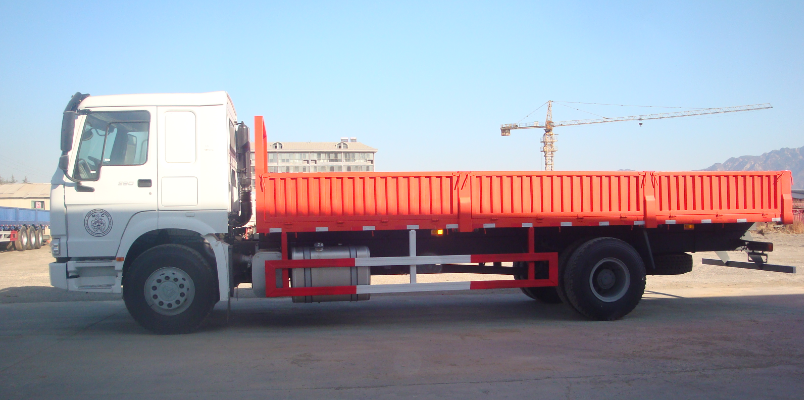

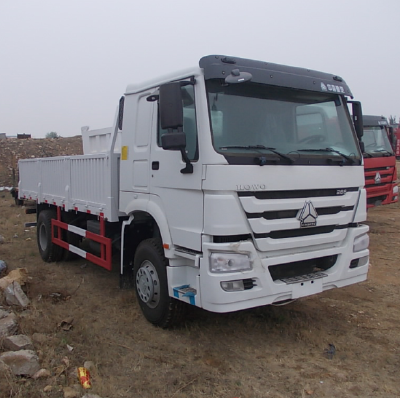

The Specification Of SINOTRUK CNHTC HOWO 4×2 Cargo Truck
| CARGO TRUCK- ZZ1167M4617 | |||
| HOWO /4x2 series /4600 wheelbase/ | |||
| 4x2,Cargo TRUCK, HOWO76 cabin(Single sleeping bed,A/C), with WD615.87 engine, 290HP, with HW13710CL transmission,ZF8098 steering, with 12.00R20 tyres, etc. | |||
| SPECIFICATION | |||
| Carriage dimension: (mm) | 5540x2300x550 | ||
| Dimension(Lx W xH) | 8377x2496x3048 | ||
| Approaching angle/Departure angle(°) | 19/23 | ||
| Overhang(front/rear) (mm) | 1500/1870 | ||
| Wheel base (mm) | 4600 1350 | ||
| Max speed(km/h) | 75 | ||
| Curb weight(kg) | 7860 | ||
| Engine | Model | WD615.87,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection | |
| Fuel type | Diesel | ||
| Power, max(kw/rpm) | 213/2200 | ||
| Emission | EURO II | ||
| Fuel tanker capacity (L) | 300 | ||
| Transmission | Model | HW13710CL,10 forward&2 reverse | |
| Brake system | Service brake | Dual circuit compressed air brake | |
| Parking brake | spring energy, compressed air operating on rear wheels | ||
| Steering system | Model | ZF8098 hydraulic steering with power assistance | |
| Front axle | HF7 | ||
| Rear axle | MCY13Q | ||
| Tyre | 12.00R20 | ||
| Electrical system | Battery | 2X12V/165Ah | |
| Alternator | 28V-1500kw | ||
| Starter | 7.5Kw/24V | ||
| Cab | HOWO70 cab(no bed,A/C),all-steel forward control,55º hydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. | ||
