- Size: 8065x2500x3150mm
- Place of Origin: Jinan
- Brand Name: SINOTRUK HUAWEI
- Model Number: ZZ4167M3811
- Weight: 16000.000 kg
SINOTRUK is the biggest and also the earliest heavy duty truck manufacture in China, specialized in the researching, developing and manufacturing of heavy trucks and related key parts. The products include truck chassis with GCW over 14 tons as well as tractor trucks with hauling capacity over 12 tons, tipper trucks, special trucks etc.
SINOTRUK Hubei Huawin Special Vehicle Co.,LTD, located in Suizhou of Hubei province, is a branch factory of SINOTRUK.The annual production capacity is over 20,000.00 units all kinds of special trucks and 10,000.00 units trailers. With a tradition over 50 years in engineering industry, Huawin has accumulated rich experienced in manufacturing all kinds of special purpose vehicles and semi trailers.
The truck products range from tractor trucks, cargo trucks, crane mounted trucks, garbage trucks, water trucks etc. And the trailer products range from flatbed trailers, tipper trailers, tank trailers, concrete mixer trailers etc.

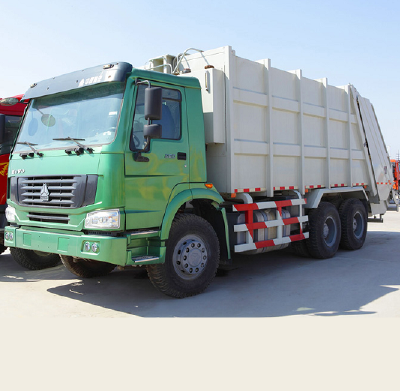

The Specification Of SINOTRUK CNHTC HOWO Compressed Garbage Truck
4x2 compressed garbage truck
Model | QDZ5160ZYSA |
Chassis Model | ZZ3167M3811 |
Overall Dimensions(L×W×H)(mm) | 8065x2500x3150 |
Pressure of Hydraulic System(MPa) | 20 |
Kerb Mass (kg) | 9840 |
Rated Loading Mass(kg) | 6030 |
Gross Vehicle Weight (kg) | 16000 |
Max. Speed(kg/h) | 90 |
Engine Model | WD615.62(EuroⅡ) |
Engine Output(KW/r/min) | 193/2300 |
Body Volume( m3) | 12 |
Filler Volume( m3) | 2.0 |
Cycle Time of Filling(s) | ≤25 |
Lifting Time of Filler(s) | 8-10 |
Time of Discharging(s) | ≤40 |
Front / Rear Sewage Tank volume(L) | 250 150 |
Max. Compression Force(kg) | >25000 |
6x4 compressed garbage truck
Model | QDZ5251ZYSA |
Chassis Model | ZZ1257N3847C (EuroⅢ) |
Overall Dimensions(L×W×H)(mm) | 9695X2500X3290(3490) |
Pressure of Hydraulic System(MPa) | 20 |
Kerb Mass(kg) | 14670/14870 |
Loading Mass(kg) | 10200/10000 |
Gross Vehicle Weight (kg) | 25000 |
Max. Speed(kg/h) | 90 |
Engine Model | WD615.95E(EuroⅢ) |
Engine Output(KW/r/min) | 247/2200 |
Body Volume( m3) | 20/22 |
Filler Volume( m3) | 2.5 |
Cycle Time of Filling(s) | ≤25 |
Lifting Time of Filler(s) | 8-10 |
Time of Discharging(s) | ≤40 |
Front / Rear Sewage Tank volume(L) | 250 150 |
Max.Compression Force(kg) | >35000 |
Contact:
Anna Fan
Skype: anran0916
Mobile: 86-18615587073
Whatsapp: 8618769734056
Please feel free to contact me if you have any questions.
