- Size: 8065x2500x3150mm
- Place of Origin: Jinan
- Brand Name: SINOTRUK HUAWEI
- Model Number: ZZ4167M3811
- Weight: 16000.000 kg
SINOTRUK is the biggest and also the earliest heavy duty truck manufacture in China, specialized in the researching, developing and manufacturing of heavy trucks and related key parts. The products include truck chassis with GCW over 14 tons as well as tractor trucks with hauling capacity over 12 tons, tipper trucks, special trucks etc.
SINOTRUK Hubei Huawin Special Vehicle Co.,LTD, located in Suizhou of Hubei province, is a branch factory of SINOTRUK.The annual production capacity is over 20,000.00 units all kinds of special trucks and 10,000.00 units trailers. With a tradition over 50 years in engineering industry, Huawin has accumulated rich experienced in manufacturing all kinds of special purpose vehicles and semi trailers.
The truck products range from tractor trucks, cargo trucks, crane mounted trucks, garbage trucks, water trucks etc. And the trailer products range from flatbed trailers, tipper trailers, tank trailers, concrete mixer trailers etc.

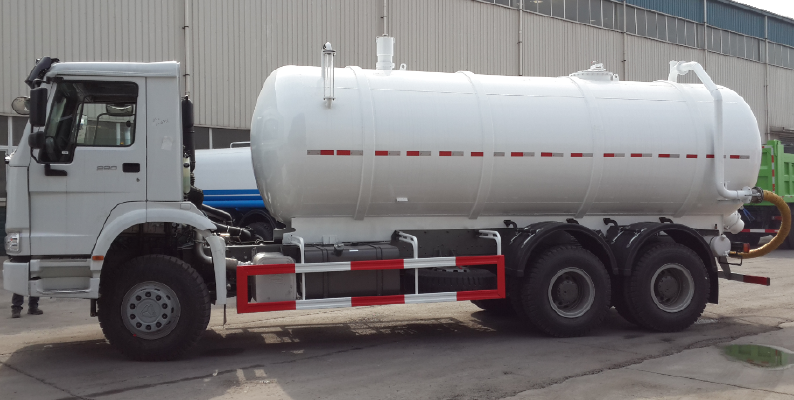

The Specification Of SINOTRUK CNHTC HOWO Vacuum Sewage Suction Truck
4x2 Vacuum Sewage Suction Truck
| The vehicle configuration: | |||||||
| Cab | HW70 standard with A/C ( no sleeper) | ||||||
| Engine | Model | WD615.62 ,266HP EURO II 6 cylinder in-line, 4 stroke, inter-cooling, turbo-charging | |||||
| Net power(kw)/speed (r/min) | 196/2200 | ||||||
| Max torque(N.m)/speed (r/min) | 1350/1100-1600 | ||||||
| Steering sytem | ZF8098, hydraulic steering with power assistance(left hand drive) | ||||||
| Fuel tank | 300L | ||||||
| Tire | 12R22.5 Vacuum tires 7 units | ||||||
| Suction Tank parameter | |||||||
| Overall dimension of tank | φ1600x4000 | ||||||
| Effective volume of tank | 10m3 | ||||||
| diameter of suction tube | φ100mm | ||||||
| suction depth | ≥8m | ||||||
| opening angle of rear tank door | 60° | ||||||
| Tank lifting angle | 30° | ||||||
| Vacuum pump | type | vane pump imported from Italy | |||||
| pumping speed | 318m3/h | ||||||
| rated speed | 1300rpm | ||||||
| Max vacuum | absolute value:10 Percentage:90% | ||||||
6x4 Vacuum Sewage Suction Truck
| The vehicle configuration: | |||||||
| Cab | HW76 1 sleeper, with air conditioner, German VDO instrument and electronic controlled system, four-point support fully floating spring suspension shock absorbers with transverse stabilizer, both the drive seat and the co-driver seat have the double locking organization safety belts, exterior sun visor, inner side sun shield, the alarming system of the alternator when there is something wrong. | ||||||
| Engine | Model | WD615.87 ,290HP EURO II 6 cylinder in-line, 4 stroke, inter-cooling, turbo-charging | |||||
| Net power(kw)/speed (r/min) | 213/2200 | ||||||
| Max torque(N.m)/speed (r/min) | 1350/1100-1600 | ||||||
| Steering sytem | ZF8098, hydraulic steering with power assistance(left hand drive) | ||||||
| Fuel tank | 300L | ||||||
| Tire | 12.00-20 nylon tires 11 units | ||||||
| Suction Tank parameter | |||||||
| Overall dimension of tank | φ1900x6200 | ||||||
| Effective volume of tank | 16m3 | ||||||
| diameter of suction tube | φ100mm | ||||||
| suction depth | ≥8m | ||||||
| opening angle of rear tank door | 60° | ||||||
| Tank lifting angle | 30° | ||||||
| Vacuum pump | type | vane pump imported from Italy | |||||
| pumping speed | 318m3/h | ||||||
| rated speed | 1300rpm | ||||||
| Max vacuum | absolute value:10 Percentage:90% | ||||||
